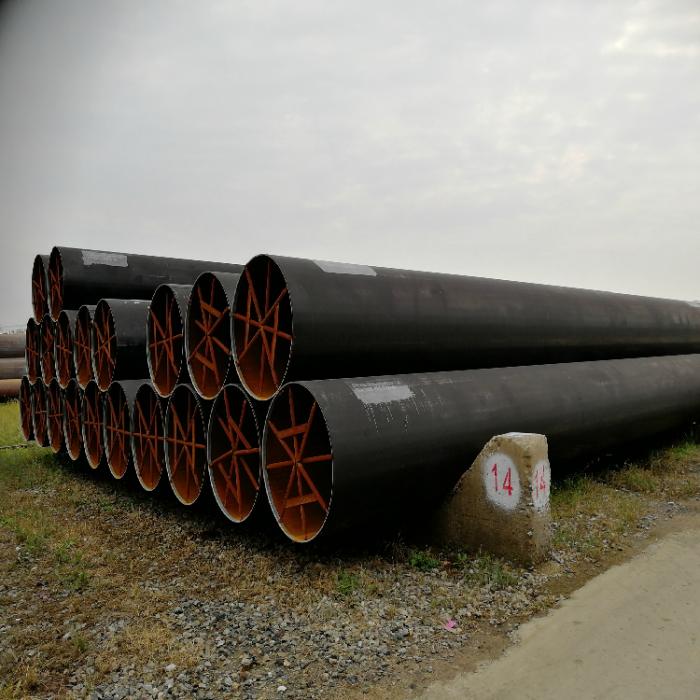

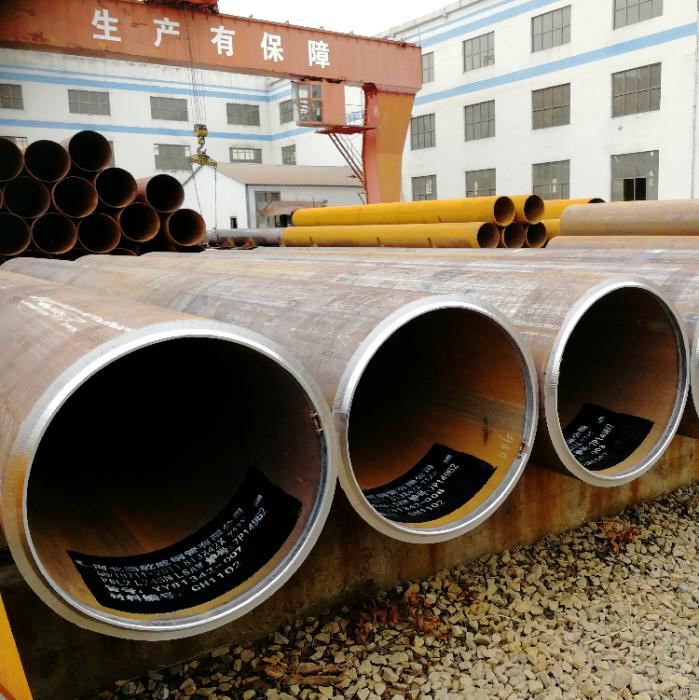

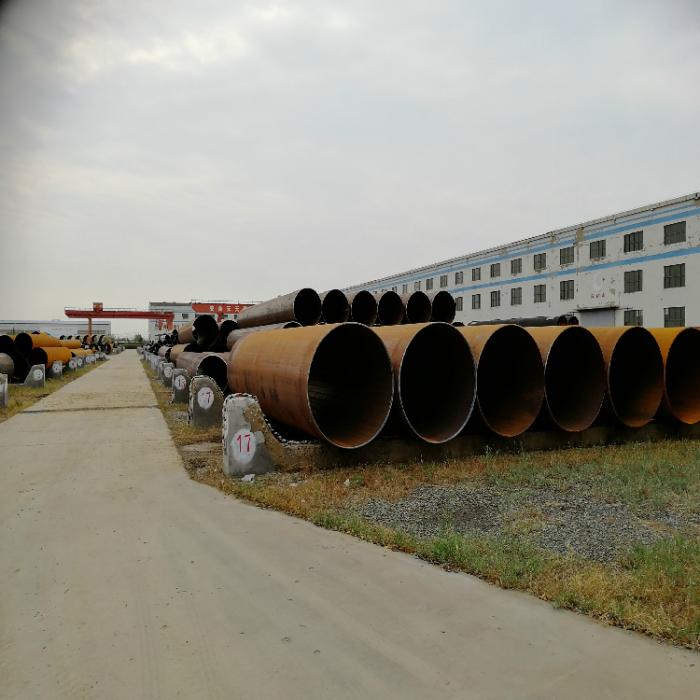

SAWH PIPES

Product Description

SAWH PIPES
Production Line
This production line adopts the most advanced welding process technology, namely Two Step Production Process. The pipes are firstly formed into a pipe body and continuous tack-welded at high speed. In the second process step the pipes are subsequently finally submerged arc welded and that gives a higher quality weld compared with other SAWH production method. This process will eliminate the tensile stress of weld seam during pipe forming and submerged arc welding. It also effectively improves stability of the welded joints and productivities. These products are widely used in onshore oil and gas pipelines.
Specifications
Outside Diameter：Φ508mm-Φ4500mm (20"- 177")
Wall Thickness：6.4-25.4mm（1/4"-1"）Quality Standards：API、DNV、ISO、DEP、EN、ASTM、DIN、BS、JIS、GB、CSA
Length：6-130m（20'-427'）
Grades：API 5L  A-X90, GB/T9711 L190-L625




Manufacturing Process

64"SAWH PIPES PRODUCT RANGE
Pipe O.D W.T. Length(m)
Min.Yield Strength(Mpa)
In. Mm 245(B) 290(X42) 360(X52) 415(X60) 450(X65) 485(X70) 555(X80) 629(X90)
20 508 6.4-12.7 6.4-12.7 6.4-12.7 6.4-11.9 6.4-11.9 6.4-11.1 6.4-10.3 6.4-9.5 8.0-18.5
22 559 6.4-12.7 6.4-12.7 6.4-12.7 6.4-12.7 6.4-11.9 6.4-11.9 6.4-11.1 6.4-10.3 8.0-18.5
24 610 6.4-14.7 6.4-14.7 6.4-14.7 6.4-12.7 6.4-12.7 6.4-11.9 6.4-11.1 6.4-11.1 8.0-18.5
26 660 6.4-15.9 6.4-15.9 6.4-14.7 6.4-14.7 6.4-12.7 6.4-12.7 6.4-11.9 6.4-11.1 8.0-18.5
28 711 6.4-15.9 6.4-15.9 6.4-15.9 6.4-14.7 6.4-14.7 6.4-12.7 6.4-11.9 6.4-11.9 8.0-18.5
30 762 6.4-18.0 6.4-18.0 6.4-17.5 6.4-15.9 6.4-15.9 6.4-14.7 6.4-12.7 6.4-11.9 8.0-18.5
32 813 6.4-21.0 6.4-21.0 6.4-20.6 6.4-19.1 6.4-18.0 6.4-17.5 6.4-15.9 6.4-14.3 8.0-18.5
36 914 6.4-22.2 6.4-22.2 6.4-22.2 6.4-22.2 6.4-22.2 6.4-19.1 6.4-18.0 6.4-15.9 8.0-18.5
40 1016 6.4-25.4 6.4-25.4 6.4-25.4 6.4-25.4 7.1-23.8 6.4-22.2 6.4-21.0 6.4-17.5 8.0-18.5
42 1067 6.4-25.4 6.4-25.4 6.4-25.4 6.4-25.4 6.4-25.4 6.4-22.2 6.4-22.2 6.4-17.5 8.0-18.5
44 1118 7.1-25.4 7.1-25.4 7.1-25.4 7.1-25.4 7.1-25.4 7.1-22.2 7.1-22.2 7.1-19.1 8.0-18.5
48 1219 7.1-25.4 7.1-25.4 7.1-25.4 7.1-25.4 7.1-25.4 7.1-23.8 7.1-22.2 7.1-19.1 8.0-18.5
52 1321 7.1-25.4 7.1-25.4 7.1-25.4 7.1-25.4 7.1-25.4 7.1-23.8 7.1-22.2 7.1-19.1 8.0-18.5
56 1422 8.0-25.4 8.0-25.4 8.0-25.4 8.0-25.4 8.0-25.4 8.0-25.4 8.0-22.2 8.0-20.6 8.0-18.5
64 1626 8.0-25.4 8.0-25.4 8.0-25.4 8.0-25.4 8.0-25.4 8.0-25.4 8.0-22.2 8.0-20.6 8.0-18.5



177"SAWH钢管产品范围

Hits: 【Print】

© CopyRight 2006-2016 ez-leaf.com（局部内容-版权及统计）

Pipe O.D

W.T.

Length(m)

Min.Yield Strength(Mpa)

In.

Mm

245(B)

290(X42)

360(X52)

415(X60)

450(X65)

485(X70)

555(X80)

20

508

6.4-12.7

6.4-12.7

6.4-12.7

6.4-11.9

6.4-11.9

6.4-11.1

6.4-10.3

6.0-130

22

559

6.4-12.7

6.4-12.7

6.4-12.7

6.4-12.7

6.4-11.9

6.4-11.9

6.4-11.1

24

610

6.4-14.7

6.4-14.7

6.4-14.7

6.4-12.7

6.4-12.7

6.4-11.9

6.4-11.1

26

660

6.4-15.9

6.4-15.9

6.4-14.7

6.4-14.7

6.4-12.7

6.4-12.7

6.4-11.9

28

711

6.4-15.9

6.4-15.9

6.4-15.9

6.4-14.7

6.4-14.7

6.4-12.7

6.4-11.9

30

762

6.4-18.0

6.4-18.0

6.4-17.5

6.4-15.9

6.4-15.9

6.4-14.7

6.4-12.7

32

813

6.4-21.0

6.4-21.0

6.4-20.6

6.4-19.1

6.4-18.0

6.4-17.5

6.4-15.9

36

914

6.4-22.2

6.4-22.2

6.4-22.2

6.4-22.2

6.4-22.2

6.4-19.1

6.4-18.0

40

1016

6.4-25.4

6.4-25.4

6.4-25.4

6.4-25.4

7.1-23.8

6.4-22.2

6.4-21.0

42

1067

6.4-25.4

6.4-25.4

6.4-25.4

6.4-25.4

6.4-25.4

6.4-22.2

6.4-22.2

44

1118

7.1-25.4

7.1-25.4

7.1-25.4

7.1-25.4

7.1-25.4

7.1-22.2

7.1-22.2

48

1219

7.1-25.4

7.1-25.4

7.1-25.4

7.1-25.4

7.1-25.4

7.1-23.8

7.1-22.2

52

1321

7.1-25.4

7.1-25.4

7.1-25.4

7.1-25.4

7.1-25.4

7.1-23.8

7.1-22.2

56

1422

8.0-25.4

8.0-25.4

8.0-25.4

8.0-25.4

8.0-25.4

8.0-25.4

8.0-22.2

64

1626

8.0-25.4

8.0-25.4

8.0-25.4

8.0-25.4

8.0-25.4

8.0-25.4

8.0-22.2

72

1829

12.0-25.4

18.0-22.2

80

2032

16.0-25.4
